Tube ice machine

Hotline:0757-23335676
Product description
Parameters

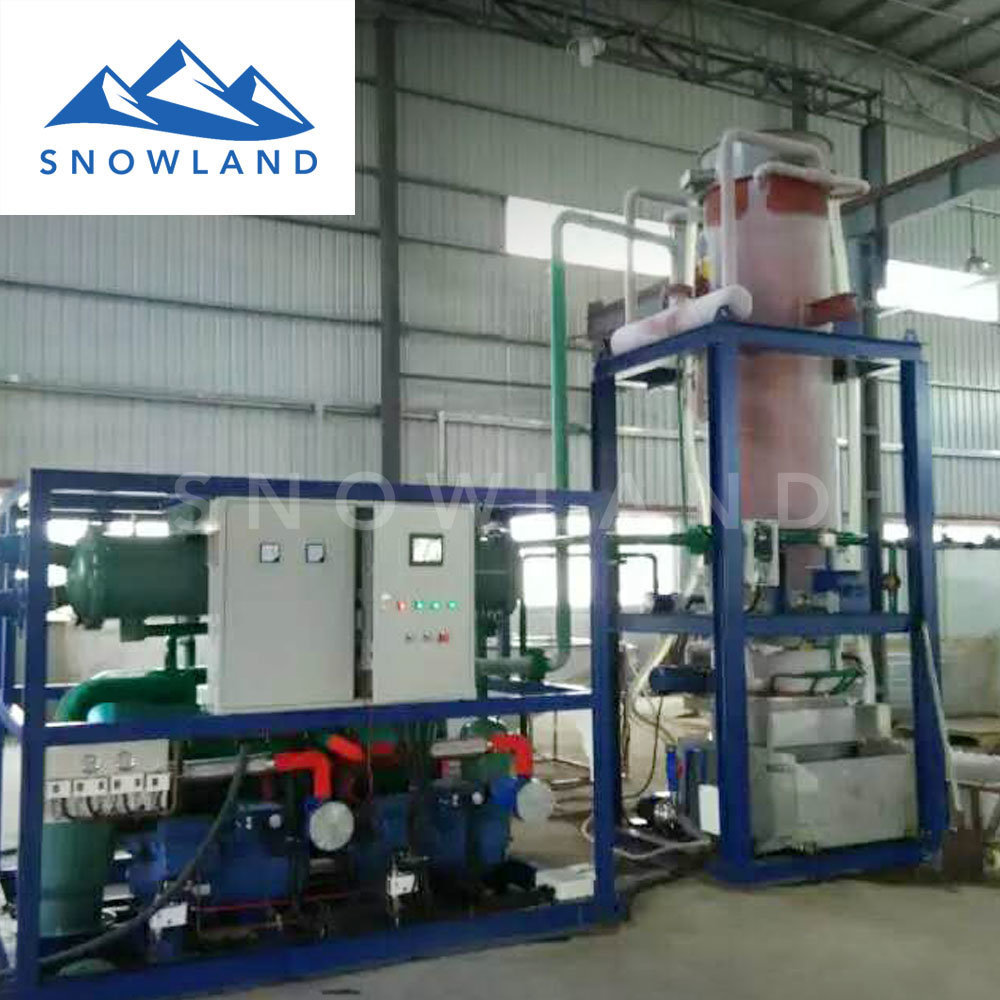

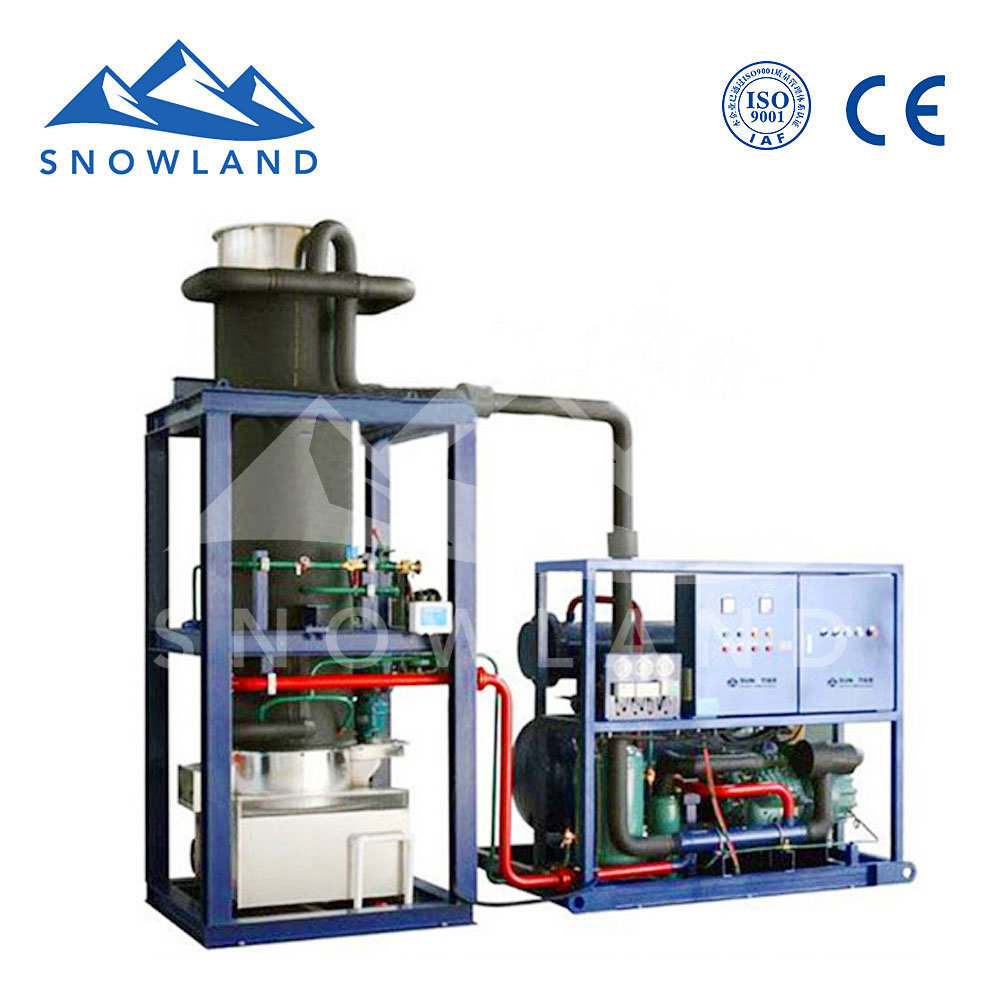

Snowland Tube Ice Making Machine for 10 Ton/Day
10t Industrial Tube Flake Block Cube Ice Making Maker Machine with One Years Warranty


Fast ice making process, high efficiency, environmental protection
Greatly shorten ice-doffing time, the whole process only takes 90 seconds. Compared with other ice making equipment, the SNOWLAND tube ice machine has the advantages of compact structure, small area, low production cost, high cooling efficiency, and energy-saving.

10t Industrial Tube Flake Block Cube Ice Making Maker Machine with One Years Warranty


High-quality materials, Safe and Sanitary
It is made of stainless steel SUS304 and SUS316, nice appearance and sanitary, easy for cleaning. Tube ice is tasteless, clean, accords with HACCP and PDA health and safety requirements.

10t Industrial Tube Flake Block Cube Ice Making Maker Machine with One Years Warranty



High reliability and low failure rate
Greatly shorten ice-doffing time, the whole process only takes 90 seconds. Compared with other ice making equipment, the SNOWLAND tube ice machine has the advantages of compact structure, small area, low production cost, high cooling efficiency, and energy-saving.


Full automatic control
PLC&HMI system controls the ice making process, convenient and simple operation, safety and stability.

Various outer diameter
Tube ice outer diameter is 2.2cm,2.5cm,2.8cm,3.2cm,3.5cm,4.2cm; The ice is even, clean and sanitary.
10t Industrial Tube Flake Block Cube Ice Making Maker Machine with One Years Warranty


High reliability, the low failure rate
More than 80% of SNOWLAND ice maker machines' accessories are the world-famous brands.; Continuous fault-free operation; Modular design, to make the machine more compact structure and easy for installation; It can be installed in the container, easy to move.

Technical parameters

Model

 Daily output(Ton)

Run Power(KW)

Machine
weight(KGS)
Machine dimensions(mm)
ST-1T-R22W 1 4.6 900 L1400*W900*H2000
ST-2T-R22W 2 8.3 1100 L1400*W900*H2000
ST-3T-R22W 3 11.3 1400 L1500*W1100*H2200
ST-4T-R22W 4 14.8 1650 L1800*W1300*H2400
ST-5T-R22W 5 18.8 1750 L1800*W1300*H2500
ST-6T-R22W 6 22.5 1880 L1800*W1300*H2500
ST-8T-R22W 8 32.2 2200 L2200*W1400*H2600
ST-10T-R22W 10 40.4 2550 L2200*W1500*H3000
ST-12T-R22W 12 47.6 2850 L2200*W1500*H3200
ST-15T-R22W 15 58.7 3770 L2600*W1600*H3500
ST-18T-R22W 18 70.2 4200 L2800*W1700*H3800
ST-20T-R22W 20 79.8 5200 L3000*W1800*H4500
ST-25T-R22W 25 98,2 7200 L3100*W1900*H4500
ST-30T-R22W 30 115.5 8500 L3200*W2000*H5000

Note: 1. Refrigerant: R22/R404A
          2. Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
          3. SNOWLAND reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.




Wide application
1. Fish, meat, vegetable, fruit keep fresh.
2. Concrete cooling.
3. Industrial usage
4. Supermarket, restaurant goods keep fresh.
5. Aquatic product keep cooling


Packaging & Shipping
1. Standard export standard.
2. A full set of ice machines includes the unit, cover, cooling tower, water pump, and water pipes.
3. The machine comes into being used, the customer only needs to prepare power and water for the machine.
4. All required components for installing the machine will be provided.
5. The cold room is also available.

Company Profile

TIPS :

1. Product customization.

2. Payment term:  100% by T/T. 40% down payment for confirming the order, the balance is to pay off before loading.

3. Delivery: 45 working days after receipt of the deposit.

4. The price should be negotiated and accepted by both parties.


FAQ:
1. Q: Is the ice machine with the refrigerant?
A: Yes, The machine comes into being used, the customer only needs to prepare power and water for it.

2. Q:  Are the ice machine tested in your factory?
A: Yes, each ice machine must be strictly tested before its delivery.

10t Industrial Tube Flake Block Cube Ice Making Maker Machine with One Years Warranty


Now we (SNOWLAND) want to recruit agents and distributors sincerely from the global. We are welcomed and glad to have you in the same line as us. If you have a strong passion for entrepreneurship and ambition,  believe our technology and skill, products and service, we (SNOWLAND) hope you become our strategic partners. And we (SNOWLAND) are devoted to providing the best products and services to the global clients with you.

Please contact us at any time, we'll contact you immediately.
