Xueyuan Ice Making Equipment Factory supplies commercial large-scale 50-ton ice machine tunnel engineering fully automatic ice production machinery

Product category

Product Details

Number of views:
1000

Xueyuan Ice Making Equipment Factory supplies commercial large-scale 50-ton ice machine tunnel engineering fully automatic ice production machinery

Hotline:0757-23335676
Product description
Parameters

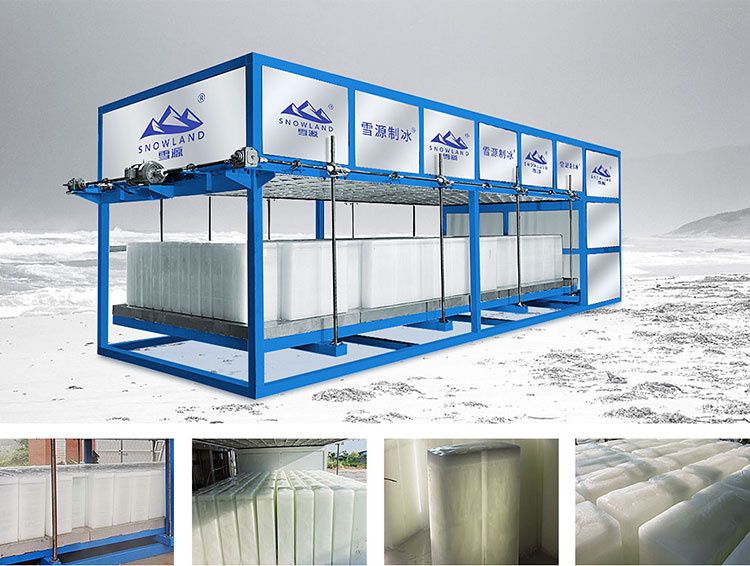

30% Energy Saving Block Ice Machine of New Tech

High-end direct cooling ice block making machine expert
1.Rapid ice doffing patent, saving more electricity and time, High output
2.Product customization, on-site installation
3.Real-time monitoring system(Optional)
4.The new full automatic control system
5.Fully automatic ice pushing device (optional)
6.Adopting world-famous components


Technical parameters


Model  Daily output(Ton) Run Power(KW) Ice block piece weight(KGS) Ice making batch(Times/day) Machine dimensions(mm)
(Take 50kg as an example)
ZL-1T-R22W 1 6 15 3Times/day L3382*W1440*H2550
ZL-2T-R22W 2 9 15 3Times/day L3382*W1440*H2550
ZL-3T-R22W 3 12 20
50
2Times/day
2Times/day
L3250*W1642*H2550
ZL-4T-R22W 4 16 20
50
2Times/day
2Times/day
L3250*W1642*H2550
ZL-5T-R22W 5 20 20
50
2Times/day
2Times/day
L3250*W1642*H2550
ZL-6T-R22W 6 24 20
50
2Times/day
2Times/day
L3250*W1642*H2550
ZL-8T-R22W 8 32 20
50
2Times/day
2Times/day
L3250*W1642*H2550
ZL-10T-R22W 10 40 20
50
100
2Times/day
2Times/day
3Times/2day
L3250*W1642*H2550
ZL-12T-R22W 12 48 20
50
100
2Times/day
2Times/day
3Times/2day
L10000*W2252*H2550
ZL-15T-R22W 15 60 20
50
100
2Times/day
2Times/day
3Times/2day
L10000*W2252*H2550
ZL-18T-R22W 18 72 20
50
100
2Times/day
2Times/day
3Times/2day
L10000*W2252*H2550
ZL-20T-R22W 20 80 50
100
2Times/day
3Times/2day
L10000*W2252*H2550
ZL-25T-R22W 25 100 50
100
2Times/day
3Times/2day
L10000*W2252*H2550
ZL-30T-R22W 30 100 50
100
2Times/day
3Times/2day
L10000*W2252*H2550

Note:  1. Air-cooled and water-cooled are suitable for the machine with daily output less than 3 tons;  Water-cooled and evaporating cooled are suitable for the machine with daily output over 3 tons.
2. Refrigerant: R22/R404A
3. Supply Power: 380V~420V, 50Hz/60Hz, 3P; 220V~240V, 60Hz, 3P; 440V~480V, 60Hz, 3P;
4. Working Conditions: Input Water Temp: 21ºC; Evaporating Temp:- 15ºC; Condensing Temp: 40ºC; (Notice: the actual ice production will be changed with input water temp and ambient temp.)
5. SNOWLAND reserve the final explanation to the products technique parameter, model and specifications can be subject to change without notice.

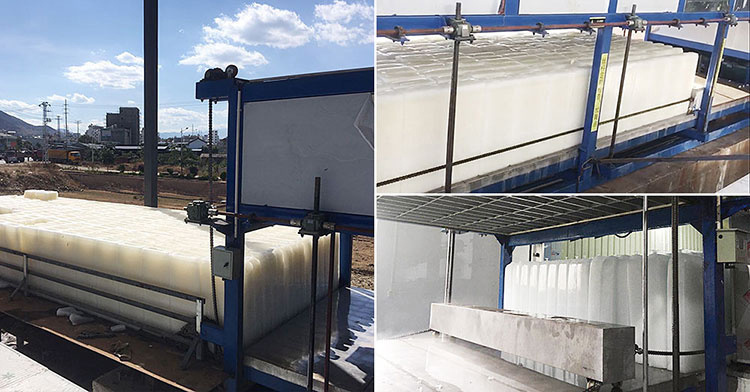

Rapid ice doffing, save time and electricity
Batch ice doffing process saves 50% time compared with the traditional direct cooling ice machine, saves time. Melting-resistant, higher ice output.  Adopt SNOWLAND rapid ice doffing technology shortens the time of ice block falling, and the advanced measures of thermal insulation greatly save electricity.

Only 50 kilowatt-hours/ton
low ice temperature, melting resistance
With traditional ice doffing technology, fluorine gas circulates in the evaporator,  which takes a long time to icefall down.  Block ice temperature will increase,  block ice melt easily and more,  so it consumes more electricity. However, with the application of SNOWLAND rapid ice doffing technology, it greatly saves ice doffing time,  and block ice temperature is lower,   so it resistant to melting.
30% Energy Saving Block Ice Machine of New Tech




Product customization, on-site installation
SNOWLAND owns a skilled technical team that can provide on-site installation and customizes according to the block ice size, output capacity, and machine configuration according to the customer's requirement.
30% Energy Saving Block Ice Machine of New Tech

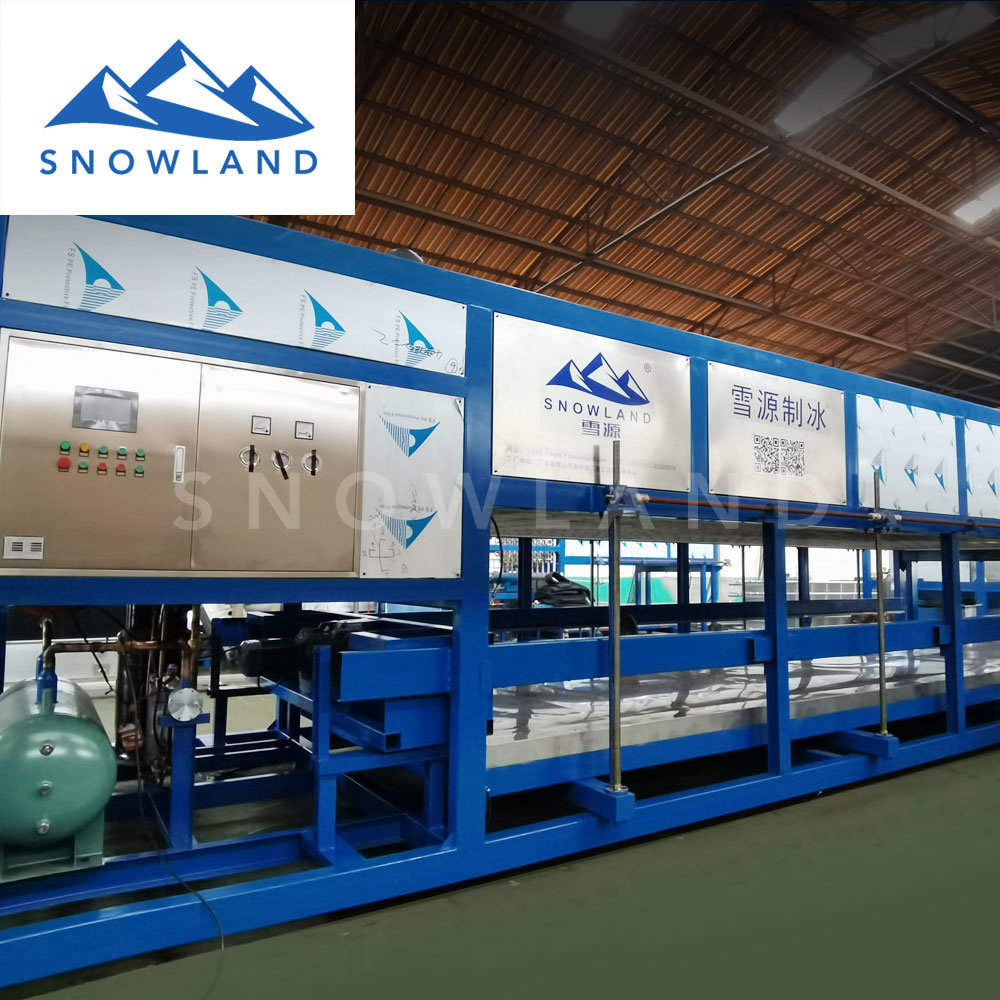

The new full automatic control system
SNOWLAND direct block ice machine has complete automatic control functions, not only including compressor high voltage protection, low voltage protection, oil shortage protection, phase sequence protection, compressor module protection, motor overload protection but also including lifting platform limited protection, automatic watering, automatic ice doffing, and other functions.
30% Energy Saving Block Ice Machine of New Tech

Adopt world-famous components
SNOWLAND direct cooling block ice machine electrical control uses Schneider's PLC and touch screen, LS electrical components, etc., using Danfoss, Emerson, Faske valve, Bitzer compressor, and other brand accessories.
30% Energy Saving Block Ice Machine of New Tech



Fully automatic ice pushing device (optional)
Two ways to push the ice, which are controlled by chain or gear.  Easy operation and low labor cost.
30% Energy Saving Block Ice Machine of New Tech

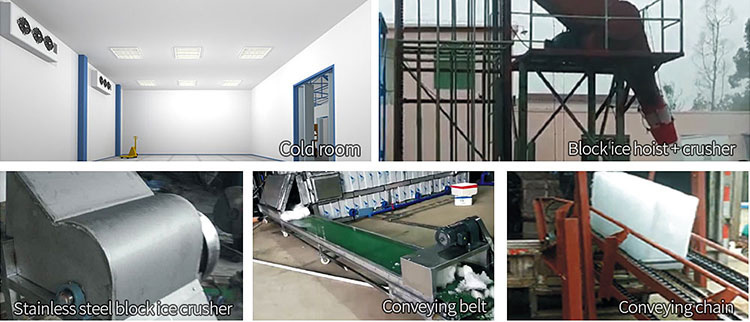

Ancillary equipment (optional)
Including full-automatic ice crusher, water chiller, conveying device and cold room.
30% Energy Saving Block Ice Machine of New Tech

Old saltwater ice plant renovation program - Evaporator of direct cooling block ice machine(optional)
Comparison between direct cooling block ice machine & traditional brine refrigeration block ice machine
  Direct cooling block ice machine Brine system block ice machine
Power consumption 50kWh/ton 75kWh/ton
Clean Ice is sanitary, clean and edible. Poor condition, mostly used for preservation and transportation
Way of ice doffing Ice doffing by water or hot fluoride circulation, Short and fast ice freezing and doffing time. Labor cost saving.  Labor operation is needed, and ice freezing time is longer.
Area Take a little area, convenient to transport, low construction cost.  lTake larger area, higher construction cost.
Operation cost Low  High
Working life The material of ice molds are Aluminum plate, the mainframe adopts stainless steel, which is anti-rust and anti-corrosive. The machine is be corroded and rusted by brine water. Service life is shorter.


30% Energy Saving Block Ice Machine of New Tech
Professional solutions for large-scale full-automatic ice-making plant projects (optional)
1.Full automatic making block ice, saving labor cost and time.
2.Power consumption 50 kWh/ton, saving electricity.
3.Full automatic block ice delivering from the cold room, loading process.
4.Supply ice storage room, ice crusher, and ice conveying system and other accessories.
30% Energy Saving Block Ice Machine of New Tech

Wide application
1. Fish, meat, vegetable, fruit keep fresh.
2. Concrete cooling.
3. Industrial usage
4. Supermarket, restaurant goods keep fresh.
5. Aquatic product keep cooling

30% Energy Saving Block Ice Machine of New Tech

Packaging & Shipping
1. Standard export standard.

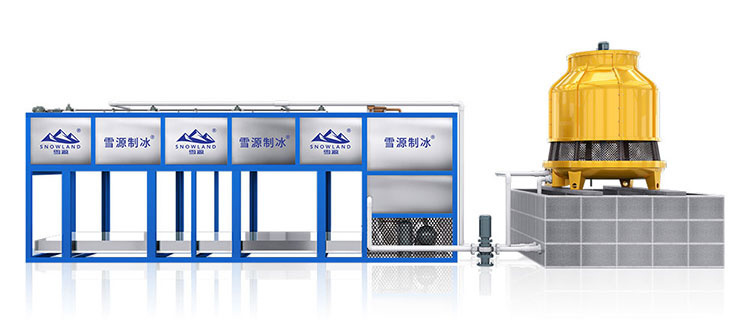

2. A full set of ice machines includes the unit, cover, cooling tower, water pump, and water pipes.
3. The machine comes into being used, the customer only needs to prepare power and water for the machine.
4. All required components for installing the machine will be provided.
5. The cold room is also available.


Company Profile
30% Energy Saving Block Ice Machine of New Tech
TIPS :

1. Product customization.
2. Payment term:  100% by T/T. 40% down payment for confirming the order, the balance is to pay off before loading.
3. Delivery: 45 working days after receipt of the deposit.
4. The price should be negotiated and accepted by both parties.


FAQ:
1. Q: Is the ice machine with the refrigerant?
A: Yes, The machine comes into being used, the customer only needs to prepare power and water for it.
2. Q:  Are the ice machine tested in your factory?
A: Yes, each ice machine must be strictly tested before its delivery.
30% Energy Saving Block Ice Machine of New Tech
Now we (SNOW LAND) want to recruit agents and distributors sincerely from the global. We are welcomed and glad to have you in the same line as us. If you have a strong passion for entrepreneurship and ambition,  believe our technology and skill, products and service, we (SNOWLAND) hope you become our strategic partners. And we (SNOWLAND) are devoted to providing the best products and services to the global clients with you.

Please contact us at any time, we'll contact you immediately.
